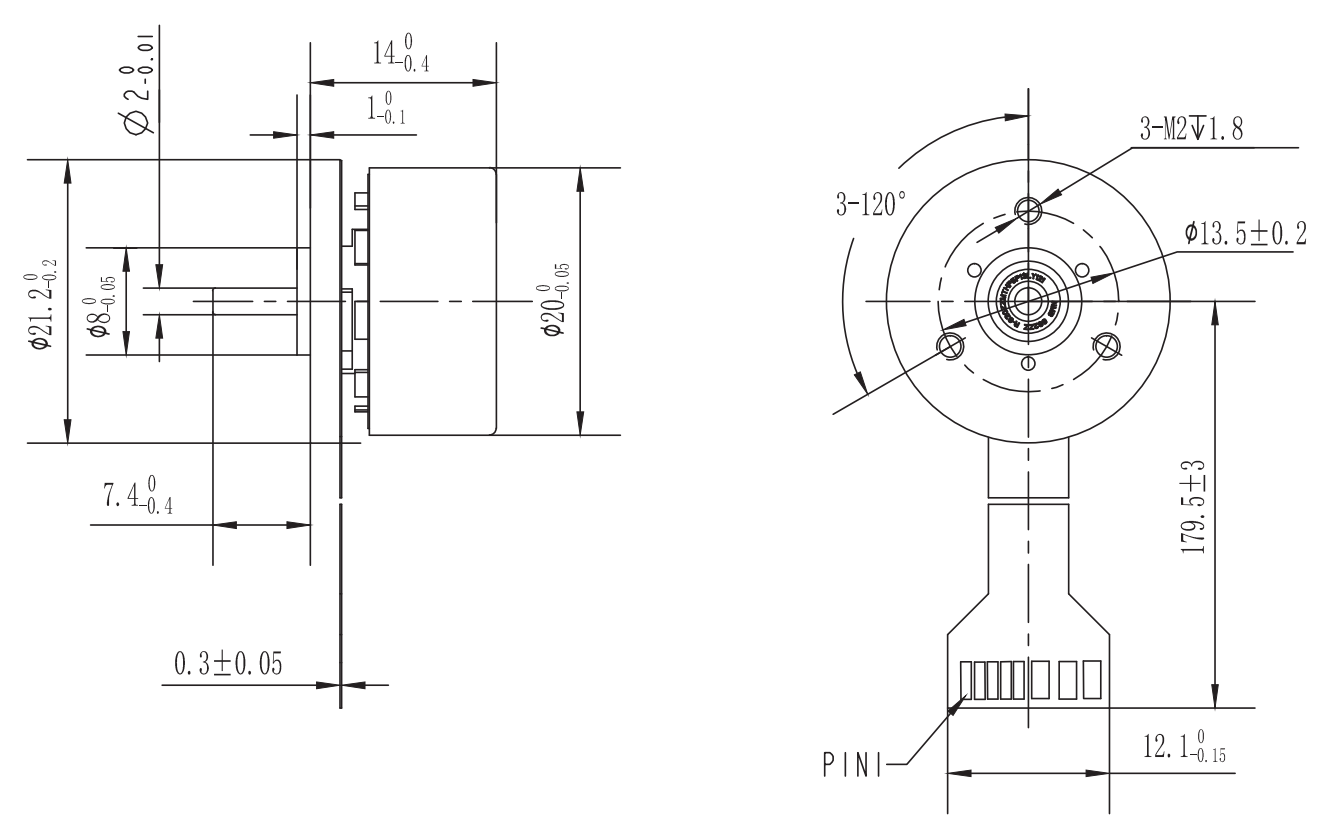

绕组连接方式 ( Winding Type ) | 星形 ( Star connection) |
霍尔分布角度 ( Hall Effect Angle ) | 120度电角度 ( Electrical Angle of 120 degree) |
径向间隙 ( Radial Play ) | 0.02mm@450g |
轴向间隙 ( Axial Play ) | 0.08mm@450g |
最大径向负载 ( Max radial force ) | 5.3N距法兰5mm ( 5mm From the flange) |
最大轴向负载 ( Max axial force ) | 1.8N |
介电强度 ( Dielectric Strength ) | 360VAC/1S |
绝缘电阻 ( Insulation Resistance ) | 100MΩ, 500VDC |
环境温度 ( Ambient Temperature ) | -20°C ~ +50°C |
绝缘等级 (Insulation Class) | Class B |
Pin No | 引出线型号Type | 功能Functions |
1 | FPC | 霍尔电源正 ( Vcc ) |
2 | 霍尔 W ( Hw ) | |
3 | 霍尔 U ( Hu ) | |
4 | 霍尔 V ( Hv ) | |
5 | 霍尔电源负 ( GND ) | |
6 | W相 ( Phase W ) | |
7 | V相 ( Phase V ) | |
8 | U相 ( Phase U ) |
电性能(Electrical Specifications)
单 位 (Unit) | FL20BLW14-12V-5105A | FL20BLW14-24V-5205A | |
极数 ( Number of poles ) | 8 | ||
相数 ( Number of phases ) | 3 | ||
额定电压 ( Rated voltage ) | VDC | 12 | 24 |
额定转矩 ( Rated torque) | mN.m | 7.59 | 7.74 |
连续运行转矩 ( Continuous stall torque) | mN.m | 9.1 | 9.2 |
额定速度 ( Rated speed ) | RPM | 5170 | 5220 |
额定功率 ( Rated power ) | W | 5 | 5 |
峰值转矩 ( Peak torque ) | mN.m | 19 | 20 |
峰值电流 ( Peak current ) | A | 1.62 | 0.85 |
线电阻 ( Line to line resistance ) | ohms@20℃ | 7.2 | 26.1 |
线电感 ( Line to line inductance ) | mH | 0.62 | 2.6 |
转矩常数 ( Torque constant ) | mN.m/A | 12 | 24 |
反电势 ( Back EMF ) | Vrms/KRPM | 0.89 | 1.78 |
转动惯量 ( Rotor inertia ) | g.cm2 | 5.1 | 5.1 |
机身长度 ( Motor length ) | mm | 14 | 14 |
重量 ( Weight ) | g | 23 | 23 |
该款电机可以根据客户需求定制。
The motor can be designed &manufactured with customized request.
