Characteristics:

1. Adopting a dedicated 32-bit motor control chip

2. Input voltage 9VDC~30VDC, wide voltage input

3. Supports multiple speed regulation modes (PWM/analog)

4. Equipped with control functions such as start stop, forward and reverse rotation, braking, etc

5. High precision speed and current dual closed-loop control

6. Compatible with square wave control and FOC control methods.

7. It has protection functions such as overvoltage, undervoltage, overcurrent, overtemperature, and locked rotor

8. Ultra high cost-effectiveness, economically efficient

Typical applications:

Widely used in various small and medium-sized automation equipment and instruments, such as electronic processing equipment, 3C non-standard automation equipment, screw locking machines, wire stripping machines, winding machines, terminal machines, laser machines, marking machines, spray painting machines, small and medium-sized carving machines, automatic grabbing equipment, specialized CNC machine tools, packaging equipment and robots.

Product Overview：

It adopts a 32-bit dedicated motor control chip, with high integration, small size, and complete protection measures. The motor adopts a new PWM control technology, which enables brushless motor operation to have advantages such as high rotation, low vibration, low noise, and good stability.

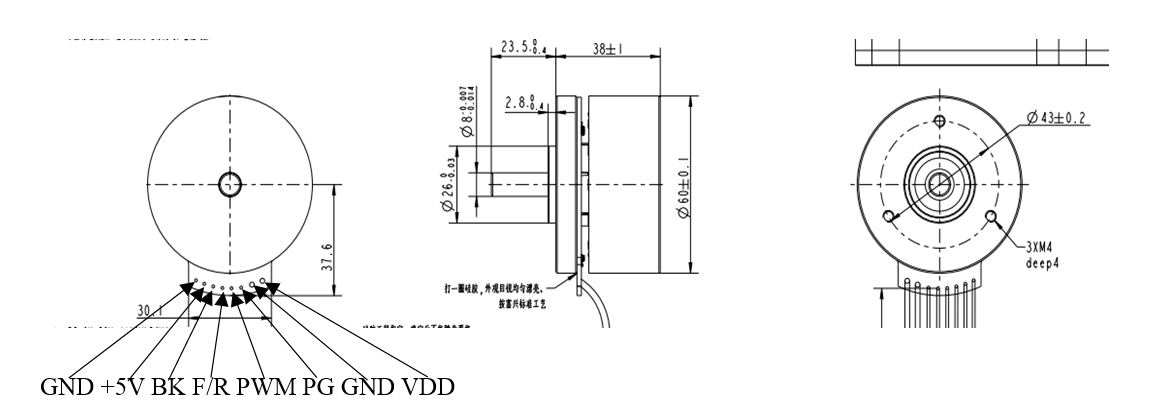

Control Port（B08B-PASK-1(LF)(SN)  8-bit pin）
