Characteristics:

1. Adopting a 32-bit motor control dedicated DSP chip and optimized open-loop vector control technology

2. Input voltage 16VDC~30VDC, recommended working voltage 24V

3. Continuous output peak current with a maximum value of 2.5A

4. Pulse signal level only supports 5V, differential input, common cathode connection method

5. The maximum pulse frequency of the control command is 500KHz

6. It has protection functions such as overvoltage, undervoltage, overcurrent, and overheating

7. Built in micro separation technology

8. Automatically halve current when stationary

Typical applications:

Widely used in various small and medium-sized automation equipment and instruments, such as electronic processing equipment, 3C non-standard automation equipment, screw locking machines, wire stripping machines, winding machines, terminal machines, laser machines, marking machines, spray painting machines, small and medium-sized carving machines, automatic grabbing equipment, specialized CNC machine tools, packaging equipment and robots.

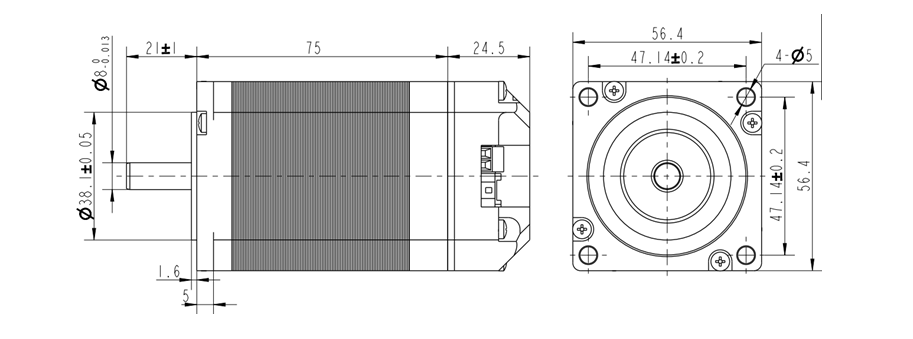

Product Overview:

Adopting 32-bit ARM digital processing technology and built-in micro and intermediate frequency vibration suppression technology, effectively improving the smoothness of motor operation and reducing heat generation. Segmentation and current can be set through dialing, with a simple interface definition, committed to providing customers with a cost-effective all-in-one machine control solution.

Dial code setting:

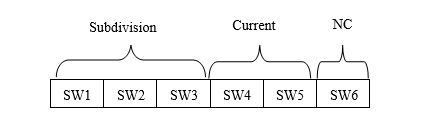

Using a 6-digit DIP switch to set the minimum current and fractional value, the detailed description is as follows:

Set the minimum current of the driver for SW5 and SW4:

Segmented dialing SW1, SW2, SW3: As shown in the dialing segmentation table below, customers can set the desired segmentation through dialing.

Control Port (B08B-PASK-1 (LF) (SN) 8-bit Pin)

Power Port （B06B-XASK-1(LF)(SN)  2-bit pin）
