IFD42
Product IE driver for stepper motor

IFD42

Adopting 32-bit ARM digital processing technology and built-in micro and intermediate frequency vibration suppression technology, effectively improving the smoothness of motor operation and reducing heat generation. Segmentation and current can be set through dialing, with a simple interface definition, committed to providing customers with a cost-effective all-in-one machine control solution.
option:
  • IFD42
  • IFD42
  • IFD42
  • IFD42

Characteristics:

1. Adopting a 32-bit motor control dedicated DSP chip and optimized open-loop vector control technology

2. Input voltage 16VDC~30VDC, recommended working voltage 24V

3. Continuous output peak current with a maximum value of 2.5A

4. Pulse signal level only supports 5V, differential input, common cathode connection method

5. The maximum pulse frequency of the control command is 500KHz

6. It has protection functions such as overvoltage, undervoltage, overcurrent, and overheating

7. Built in micro separation technology

8. Automatically halve current when stationary

9. Smooth operation with low motor noise


Typical applications:

Widely used in various small and medium-sized automation equipment and instruments, such as electronic processing equipment, 3C non-standard automation equipment, screw locking machines, wire stripping machines, winding machines, terminal machines, laser machines, marking machines, spray painting machines, small and medium-sized carving machines, automatic grabbing equipment, specialized CNC machine tools, packaging equipment and robots.


Product Overview:

Adopting 32-bit ARM digital processing technology and built-in micro and intermediate frequency vibration suppression technology, effectively improving the smoothness of motor operation and reducing heat generation. Segmentation and current can be set through dialing, with a simple interface definition, committed to providing customers with a cost-effective all-in-one machine control solution.


Dial code setting:

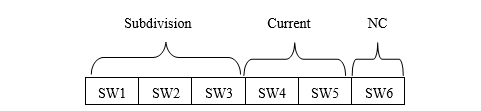

Using a 6-digit DIP switch to set the minimum current and fractional value, the detailed description is as follows:


Set the minimum current of the driver for SW5 and SW4:

Current

SW6

SW5

0.5A

ON

ON

1A

OFF

ON

1.5A

ON

OFF

2A

OFF

OFF

Segmented dialing SW1, SW2, SW3: As shown in the dialing segmentation table below, customers can set the desired segmentation through dialing.

Pulse/rev

SW1

SW2

SW3

400

ON

ON

ON

800

OFF

ON

ON

1600

ON

OFF

ON

3200

OFF

OFF

ON

6400

ON

ON

OFF

12800

OFF

ON

OFF

25600

ON

OFF

OFF

51200

OFF

OFF

OFF


Control Port (B08B-PASK-1 (LF) (SN) 8-bit Pin)

Pin   number

Signal

Function

Explanation

1

PU

pulse

Supports   3.3V and 5V levels, using higher levels requires external current limiting   resistors

2

F/R

direction

Conduction   refers to forward rotation, and cutoff refers to reverse rotation

3

MF

Enable

Conduction   is enabled, cutoff is stopped

4

AR

Alarm   clear

Conduction   can clear fault signals

5

XCOM

Input   signal common terminal

Supports   common anode and common cathode wiring

6

ALM

Alarm   output

OC   gate output

7

STA

Motor   operating status

High   level normal, low level alarm

8

YCOM

Output   signal common terminal

OC   gate output


Power Port (B06B-XASK-1(LF)(SN)  2-bit pin)

Pin   number

Signal

Function   Description

1

VDD

Power   input positive terminalinput voltage 10V~50Vdc

2

GND

Power   input negative terminal

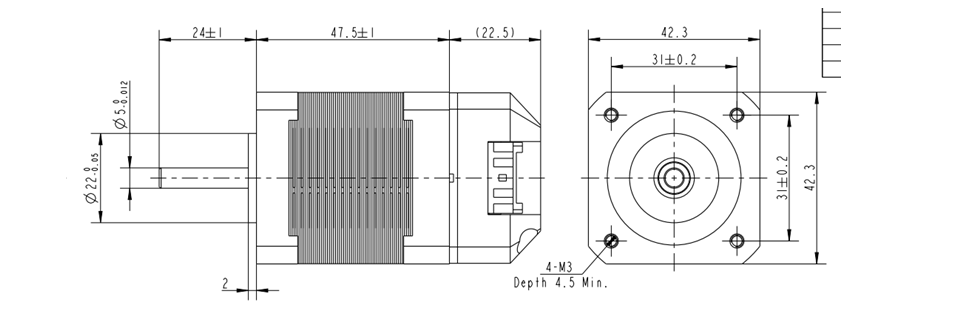

Motor size


Download
iFD42 621.45 KB
