iBLD45W-S
Product IE driver for outer rotor motor

iBLD45W-S

It adopts a 32-bit dedicated motor control chip, with high integration, small size, and complete protection measures. The motor adopts a new PWM control technology, which enables brushless motor operation to have advantages such as high rotation, low vibration, low noise, and good stability.
option:
  • iBLD45W-S
  • iBLD45W-S
  • iBLD45W-S
  • iBLD45W-S

Characteristics:

1. Adopting a dedicated 32-bit motor control chip

2. Adopting FOC magnetic field orientation control technology and SVPWM (space vector modulation technology)

3. Input voltage 9VDC~30VDC, wide voltage input

4. Supports multiple speed regulation modes (PWM/analog)

5. Equipped with control functions such as start stop, forward and reverse rotation, braking, etc

6. High precision speed and current dual closed-loop control

7. It has protection functions such as overvoltage, undervoltage, overcurrent, overtemperature, and locked rotor

8. Ultra high cost-effectiveness, economically efficient

9. Acceptable customization



Typical applications:

Widely used in various small and medium-sized automation equipment and instruments, such as electronic processing equipment, 3C non-standard automation equipment, screw locking machines, wire stripping machines, winding machines, terminal machines, laser machines, marking machines, spray painting machines, small and medium-sized carving machines, automatic grabbing equipment, specialized CNC machine tools, packaging equipment and robots.


Product Overview:

It adopts a 32-bit dedicated motor control chip, with high integration, small size, and complete protection measures. The motor adopts a new PWM control technology, which enables brushless motor operation to have advantages such as high rotation, low vibration, low noise, and good stability.


Control Port(B08B-PASK-1(LF)(SN)  8-bit pin)


Pin   number

signal

function

Explanation

1

GND

Sensor power   supply Ground

Sensor power   supply ground, shared with main power supply ground

2

+5V

Sensor +5V   power supply

Sensor +5V   power supply, Output current <=30mA

3

BK

Brake signal

Invalid when   suspended or connected to a high level (1.7V~24V)

Connected to low-level   brake effective (0V~0.8V)

4

F/R

Directional   signal

CW\CCW High and   low level polarity can be configured by software

High level1.7V~24V

Low level   (0V~0.8V)

5

SV/PWM

Speed   regulation signal

Analog   speed control: 0.5V~4.5V,

PWM   speed regulation: Duty cycle polarity configurable

0~5%   Full speed

5~95%   Linear speed regulation

95~100%   cease

6

PG

Speed signal

TTL-5V level1 pulse /1   Antipolar / rotate

7

GND

Power input   negative terminal

Negative pole   of power input

8

VDD

Positive pole   of power supply

Power input   positive terminalinput voltage 9V~30Vdc

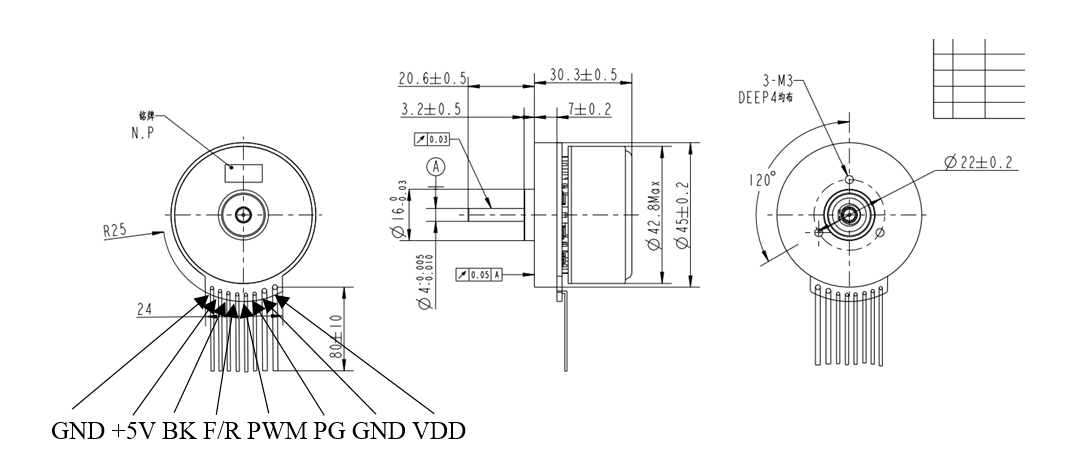

Motor size


Download
iBLD45W-S External Rotor Series Driver User Manual 408.6 KB
